WS-C2960X-24PD-L Overview
Cisco Catalyst 2960X series 24 ports LAN Base stackable switch delivers Power over Ethernet Plus (PoE+) technology and 2 x 10G SFP+ uplink ports.
Quick Specs

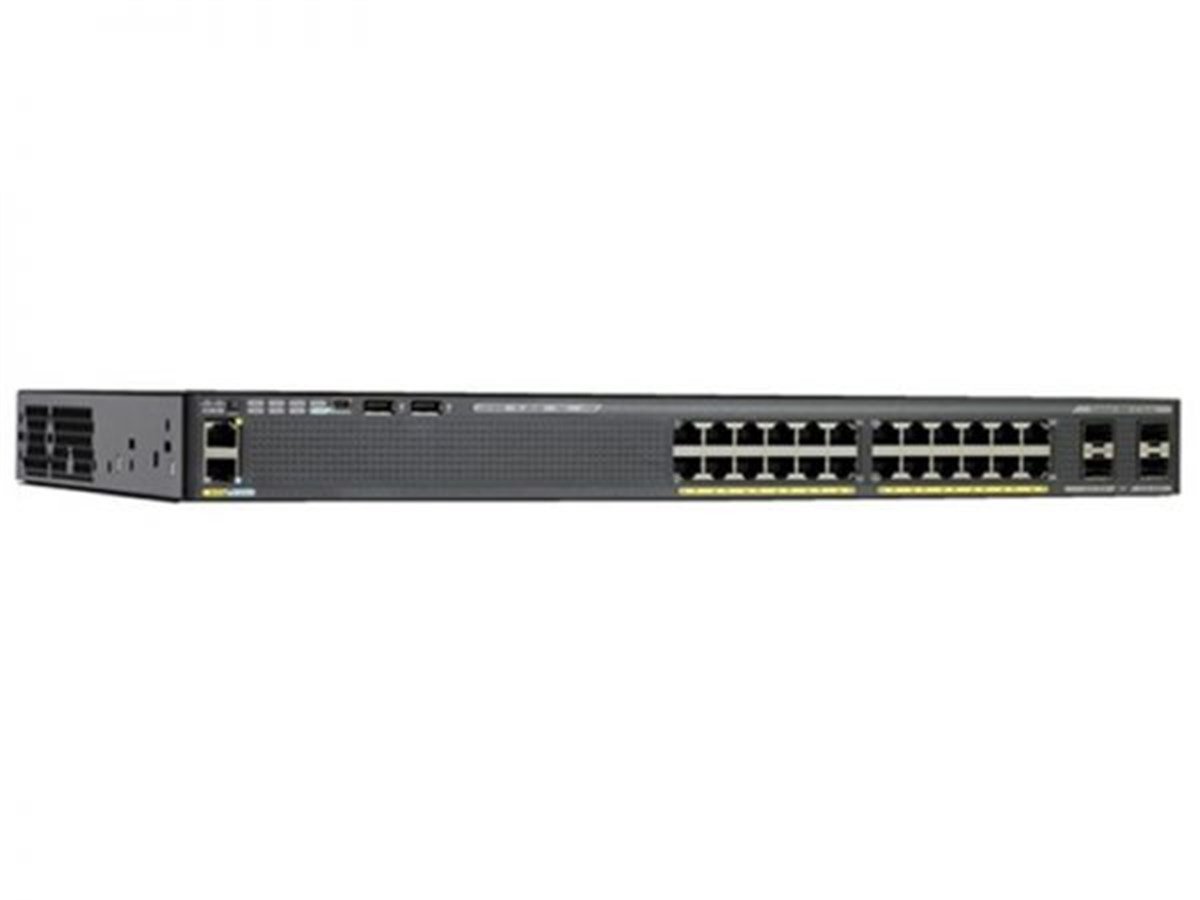

Figure 1 shows the appearance of WS-C2960X-24PD-L.
Table 1 shows the Quick Specs.
|
Product Code
|
WS-C2960X-24PD-L
|
|
Enclosure Type
|
Rack-mountable - 1U
|
|
Feature Set
|
LAN Base
|
|
Uplink Interfaces
|
2 x 10G SFP+
|
|
Ports
|
24 x 10/100/1000 Ethernet Gigabit ports
|
|
Available PoE Power
|
370W
|
|
Maximum stacking number
|
8
|
|
Stack bandwidth
|
80G
|
|
Forwarding Performance
|
95.2Mpps
|
|
Switching Bandwidth
|
216Gbps
|
|
RAM
|
512 MB
|
|
Flash Memory
|
128 MB
|
|
Dimensions
|
44.5cm x 27.9cm x 4.45cm
|
|
Package Weight
|
9.19 Kg
|
Product Details
Figure 2 shows the front panel of WS-C2960X-24PD-L.
Note:
① Ethernet management port ⑥ SFP module ports
② Mode button ⑦ 24 x 10/100/1000 ports
③ Switch LEDs ⑧ CONSOLE LED
④ USB mini-Type B (console) port ⑨ MGMT LED
⑤ USB Type A ports ⑩ RJ-45 console port
·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, POE and STACK LEDs.
Figure 3 shows the back panel of WS-C2960X-24PD-L.
Note:
① FlexStack-Plus module slot and cover ③ RPS Connector
② Fan Exhaust ④ AC power connector
Figure 4 shows the stackable capacity.
This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.
